What Is a Building Management System (BMS)? A Clear, Modern Overview for Smarter Operations

According to ESI Group USA, 40% of a building’s energy runs through systems a BMS can control, 70% if you include lighting. Get that control right and portfolios routinely see 36% savings on HVAC-related loads and 23% on lighting. A BMS plays a crucial role in managing and optimizing a building's energy usage, ensuring efficient operation and minimizing unnecessary consumption.

Once seen as a “nice to have,” the building management system (BMS) is now central to facility operations.

In 2025, with rising energy costs, ESG reporting demands, and higher tenant expectations. Buildings need more than HVAC and lighting control. They need efficiency, comfort, and compliance in real time. But here’s the catch: a BMS was built for comfort, not complete visibility. Older or siloed setups often miss data, leaving owners and operators exposed to hidden waste, failed audits, and net-zero pressure.

That’s where nanoGrid comes in. We don’t replace your building management system, we complete it. By providing time series recording with accurate utility data across electricity, gas, water, and sub-loads, we fill the blind spots a BMS was never designed to cover.

In this article, we explain what a BMS is, where it falls short, and how enhanced metering solutions like nanoGrid helps you cut costs, prove compliance, and future-proof your buildings.

Quick Definition: What Is a Building Management System?

A building management system (BMS) is a centralized software and hardware platform that monitors and controls a building’s mechanical, electrical, and plumbing (MEP) systems. These automation systems improve efficiency, comfort, and safety by managing equipment such as HVAC, lighting, power, fire systems, security, heating systems, and electrical systems.

Centrally, a BMS connects and controls critical building systems, including power systems as a key component, using a combination of field devices, controllers, communication protocols (like BACnet or Modbus), and user interfaces.

While the technology varies, the principle is always the same: automate operations, reduce waste, and keep buildings running smoothly.

Whether managing air conditioning in a small office or coordinating automation systems across a corporate campus, a well-implemented BMS improves comfort, lowers energy consumption, and extends equipment life, all from a centralized control layer. A BMS provides complete control over all integrated systems, ensuring efficient and safe building operations.

Up next, we’ll break down how these systems are structured and what components make them work.

BMS vs BAS vs BEMS vs EMS vs SCADA: What’s the Difference?

These terms are often used interchangeably, but they shouldn’t be. While they all relate to building automation and control systems, including building automation control systems (BACS) and integrated buildings management systems. Which are increasingly required by regulations for energy efficiency and compliance, their focus and functionality differ.

Here’s how they break down:

1. ‍BMS (Building Management System) controls and automates MEP systems like HVAC, lighting, and ventilation at building level. Its key strength lies in real-time control of day-to-day building operations.‍
2. BAS (Building Automation System) is essentially a synonym for BMS, particularly common in the US market. It operates at building level with a focus on automating core building functions.‍
3. BEMS (Building Energy Management System) goes a step further by specifically tracking and optimizing energy usage within a building. It's particularly effective for improving energy efficiency in HVAC and lighting systems.‍
4. EMS (Energy Management System) operates at portfolio level rather than individual buildings. It analyzes energy data across multiple sites, enabling utility analytics, cost control, benchmarking, and consolidated reporting.‍
5. SCADA (Supervisory Control and Data Acquisition) serves industrial environments, often at utility or plant scale. It monitors and controls complex industrial processes in real time, typically found in manufacturing or utility infrastructure.

In general, most commercial buildings today operate a building management system or building automation system to control lighting, heating, and ventilation. But that doesn’t mean they’re collecting the kind of granular energy data needed for analytics, sustainability, or compliance.

That’s where EMS, and especially building energy management systems, step in, offering visibility into energy usage, consumption trends, and areas for optimisation.

 Important: Even the most advanced BMS does not provide minute-level, traceable utility data across portfolios. That gap is filled by systems like nanoGrid, which complements the control layer with real-time, audit-ready energy insights by time series recording.

For a side-by-side breakdown of control vs. energy insight, read bms vs ems.

Core Components of a BMS: The Brains Behind the Building

A building management system (BMS) brings different building systems together into one centralized control layer. It’s not a single tool, but a structured combination of software, hardware, and communication infrastructure. Together, they ensure your building runs efficiently, comfortably, and securely.

Now let's have a high level overview of each component.

1. Software: the engine

The software layer is the control center of the BMS. It’s where building operators interact with the system, make decisions, and automate actions.

Most BMS platforms include:

• User interface (UI): A dashboard for monitoring systems and adjusting settings
• Automation rules engine: Logic that triggers actions, like adjusting temperature or turning off lighting after hours
• Alarm management: Alerts when something fails or behaves outside a set of parameters
• Data logging and trending tools: Track energy usage and performance over time, and analyze data to identify trends and optimize building performance

In modern building management systems, this layer may also include machine learning algorithms to help optimize performance and identify patterns that human operators might miss.

2. Hardware: controllers, sensors, and actuators

Next, the BMS relies on a range of hardware devices to collect data and execute actions. This includes:

• Controllers and PLCs (programmable logic controllers): These are the devices that receive commands from the software and send signals to various systems
• I/O modules: These connect sensors and actuators to the controllers
• Sensors and actuators: These detect what’s happening in the building (such as temperature or motion) and take action (such as adjusting airflow or switching off lights)

These components work together in real time to manage HVAC systems, lighting, ventilation, fire systems, and more. In large commercial buildings or campuses, having reliable and scalable hardware is essential to support complex operations.

3. Communications Infrastructure: connecting everything

To bring the whole system together, the BMS needs a stable and flexible communication layer. This infrastructure allows all hardware and software components to exchange data continuously. It typically includes:

• Bus systems or control networks: Wired systems like Modbus, BACnet MS/TP, or KNX are common automation and control networks used
• Gateways: Devices that translate between different communication protocols, so older equipment can still work with modern software
• Edge devices: Local processors that handle data on-site to reduce latency and ensure fast decisions
• Field devices and subsystems: These include equipment like HVAC controllers, lighting systems, or security panels that are all networked back to the BMS

In newer smart buildings, this layer may also support remote access, mobile monitoring, and integration with cloud platforms.

When all three layers: software, hardware, and communications, work together, you get a functioning BMS that can monitor, control, and optimize various building systems.

In the BMS-world, Honeywell is known for broad BMS solutions that combine automation, software, and controls to cut energy use and improve efficiency at scale. While Johnson Controls’ Metasys platform is another frequent reference point, often cited for contributing to global energy management trends.

But as we’ll see next, the real value comes when these systems are put to work in real-world environments, supported by the right data.

 How BMS Works: From Input to Action

A modern building management system (BMS) doesn’t just monitor building systems—it controls them. This happens through a continuous loop of input, logic, and action. Let’s break it down.

Step 1: Inputs from the Field

Everything starts with real-time data. A BMS collects inputs from sensors across your building—measuring temperature, humidity, CO₂ levels, occupancy, light, and more. These sensors form the eyes and ears of the system.

The data flows through control networks such as BACnet, Modbus, KNX, or LON. These protocols allow connected systems to communicate efficiently, even if they come from different vendors.

Step 2: Logic and Processing

Once the data is received, the BMS applies its internal logic engine. Based on preset rules or schedules, it decides what to do next. This logic can include:

• Threshold-based responses (e.g. lower blinds if lux level exceeds a limit)
• Time-based scheduling (e.g. reduce HVAC output after 6 p.m.)
• Feedback control loops (e.g. adjust airflow dynamically to maintain set temperature)
• Fault detection algorithms (e.g. identify abnormal system behavior and trigger alerts before issues escalate)

The system constantly compares sensor inputs to setpoints and adapts accordingly. If a failure is detected, the BMS can trigger alerts in real time.

Step 3: Actuation and Control systems

Once a decision is made, the BMS sends signals back out to actuators and control devices. This might mean:

• Dimming lights
• Adjusting ventilation rates
• Resetting equipment
• Opening or closing dampers

The action is executed almost immediately, creating a closed-loop control system that operates 24/7 without manual intervention.

Step 4: Operator Interface and Alerts

All of this is visualized and managed through a user interface, usually a central dashboard. Facility managers can monitor equipment health, adjust settings, respond to alerts, and review historical trends. In modern systems, this interface is accessible via browser, mobile app, or remote desktop.

If there’s a system failure, such as a malfunctioning valve or overheating unit, the BMS not only logs it—it sends an immediate alert to the responsible technician or facility team.

BMS Use Cases: Comfort, Control, and Cost Savings

A building management system (BMS) is more than just a control panel. It’s the operational backbone of any modern facility.

Let’s quickly explore some of the core functions where BMS systems bring measurable value.

HVAC Systems and Indoor Comfort

Heating, ventilation, and air conditioning (HVAC) are the most common systems managed by a BMS. Why? Because HVAC accounts for a significant share of energy usage, up to 50% in commercial buildings, according to ASHRAE.

The BMS controls:

• Temperature setpoints across zones
• Ventilation rates (CO₂-based demand control)
• Humidity and airflow levels
• Air handling unit (AHU) schedules

The result: stable indoor conditions with optimized energy use. BMS platforms can adjust heating or cooling dynamically, depending on occupancy, time of day, or external weather. By maintaining an optimal working environment, a BMS enhances occupant comfort and productivity.

Lighting Control and Scheduling

Lighting is the second biggest energy consumer after HVAC. A BMS manages lighting schedules based on:

• Daylight availability (lux sensors)
• Occupancy sensors
• Building operating hours

By avoiding unnecessary lighting in unoccupied rooms or during daylight hours, facilities significantly reduce their electricity consumption and extend bulb life—without sacrificing comfort or safety.

Indoor Air Quality Monitoring

Modern BMS systems now integrate air quality metrics—especially in offices, schools, and healthcare buildings.

Using sensors for PM2.5, CO₂, VOC, and humidity, the BMS can adjust ventilation or issue alerts when thresholds are exceeded. This is critical for human health, productivity, and compliance with indoor air standards (e.g. WELL, ASHRAE 62.1).

Access Control and Security Integration

The BMS can interface with access control systems, such as badge readers or biometric scanners. This lets operators manage building access schedules, monitor entry points, and even link access with lighting or HVAC automation.

For instance: when the last person exits a zone, lights and ventilation can shut down automatically—ensuring energy savings and security in one step.

Commissioning and Retrofitting

During new construction or retrofit projects, a BMS provides structure and control:

• Ensures systems are installed correctly (commissioning)
• Helps calibrate HVAC or lighting sequences
• Enables data-driven performance testing over time

In retrofit scenarios, the BMS can integrate with existing systems to deliver improvements without full replacement, especially when paired with smart submetering or additional analytics.

Real-World Impact

Used effectively, a BMS helps building operators:

• Lower energy bills
• Improve occupant comfort and wellbeing
• Extend the life of electrical equipment and ventilation systems
• Ensure compliance with fire safety and indoor air regulations
• Simplify system oversight through a single platform
• Enable building managers to monitor and optimize building operations, ensuring efficient energy use, rapid response to system failures, and improved occupant comfort

And while traditional BMS platforms cover these use cases well, they often lack granular, time-stamped utility data. A gap increasingly important for ESG, CSRD, and performance reporting.

That’s where advanced metering solutions like nanoGrid come in, offering complementary insight into minute-level energy supply and consumption across every asset. (We’ll cover that in a later section.)

Smart Building Trends: What Modern BMS Must Handle

The role of the BMS is more and more evolving from basic control to data-driven intelligence.

From Monitoring to Intelligence

Older systems reacted to fixed thresholds. Today’s systems must be predictive and responsive:

• Predictive maintenance with machine learning: Detect abnormal patterns (e.g., temperature or pressure drift) and alert teams before failures.
• IoT edge sensors: Low-power devices (e.g., LoRa, Zigbee) provide minute-by-minute visibility across HVAC, lighting, IAQ, and occupancy.
• Real-time energy monitoring: Operational teams need immediate insights to manage peaks and avoid waste, not just monthly summaries.

This is why many managers pair their BMS with utility monitoring solutions like nanoGrid, to close the data gap and move from static control to operational insight.

Sustainability Is Resetting Expectations

Efficiency is now a compliance requirement and a brand differentiator. A modern BMS must:

• Support ESG, LEED, BREEAM, and CSRD via traceable, time-stamped data, or integrate with platforms that provide it.
• Enable GRESB and CRREM readiness with per-building and per-asset utility performance.
• Deliver audit-ready traceability so regulators and investors can verify results.
• Play a key role in reducing energy consumption by monitoring and optimizing building systems to meet sustainability targets.

BMS remains the control layer. To play a full role in sustainability and compliance, it needs accurate, continuous, traceable data, often via complementary platforms like energy management systems or utility monitoring solutions.

Shortlisting providers for your stack? Start with top 10 building management system companies.

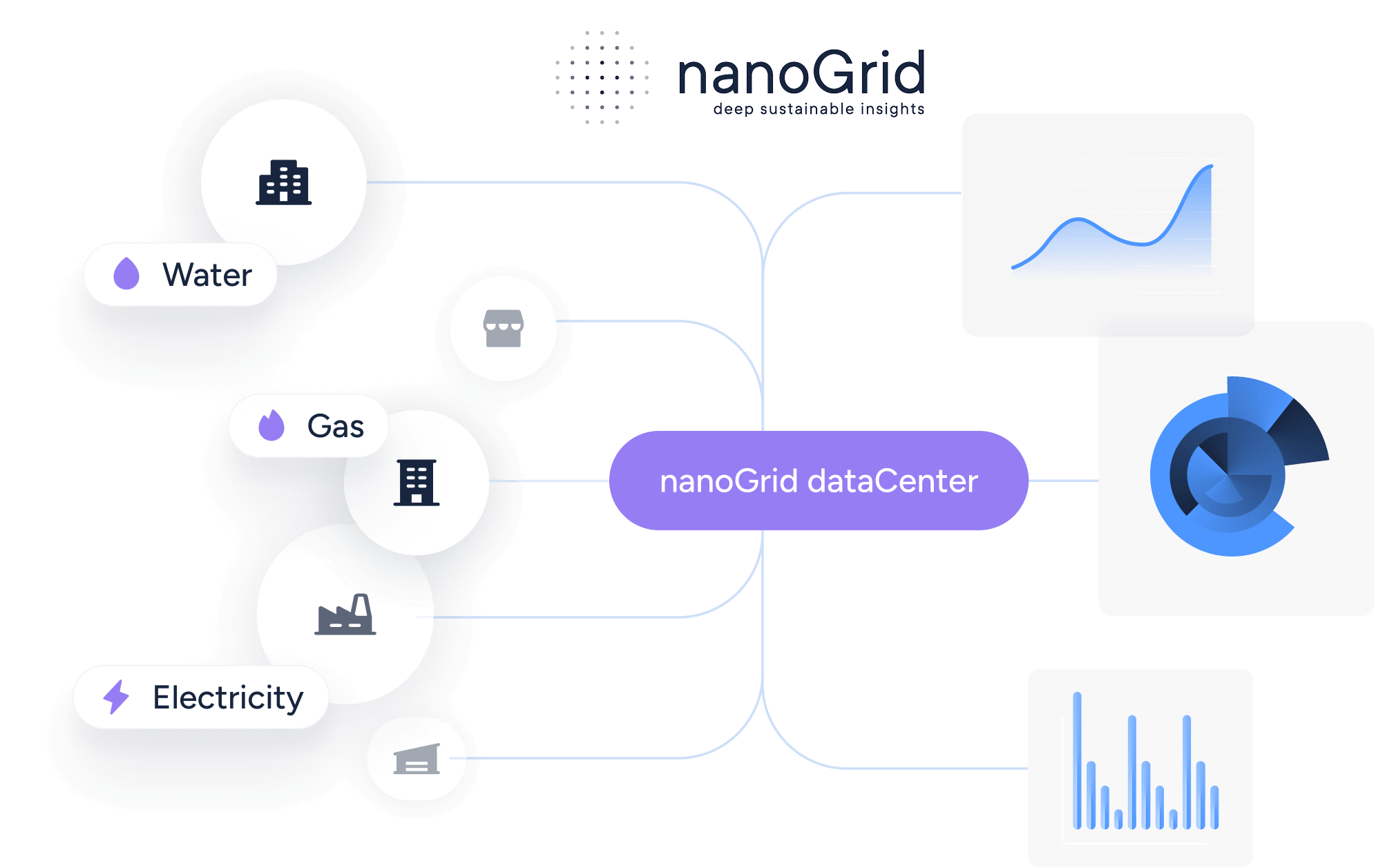

How BMS and nanoGrid Work Together

A modern BMS gives you control. nanoGrid gives you visibility, traceability, and proof. The two are complementary:

• The BMS turns down HVAC based on schedules or occupancy.
• nanoGrid verifies the action, tracks the actual energy drop, and logs savings. Down to the kilowatt-minute with time-series recording.

Such systems provide a comprehensive solution for both control and verification in building management.

Without granular metering, even the smartest automation can’t deliver proof of performance. Without controls, metering is passive. Together, they form a closed feedback loop where decisions lead to measurable results.

Want the deeper comparison? See our guide on BMS vs. nanoGrid to learn how integrating both systems builds an ESG-ready strategy.

For the ESG and net-zero lens on this, dive into sustainable building management.

A BMS controls your building - nanoGrid proves it’s working

Knowing what is a building management system is only the start. As it is essential for modern building operations and compliance, and controls and monitors subsystems like HVAC, lighting, security systems, and energy management. Real estate teams today need systems that don’t just automate they must track, verify, and report.

A modern BMS gives you comfort and control. But when paired with nanoGrid’s minute-level data, cross-utility coverage, and audit-ready reports, it becomes a full performance ecosystem ready for CSRD, GRESB, CRREM, and beyond.

Together, they close the gap between automation and accountability. That’s the future of building energy management.

‍
